Some of them for Categories (still under construction)

AQS100 - Miscellaneous

Test Fixtures like Auxiliary Breakout Boxes, Power Interrupt, etc,

01 - Dual Auxiliary Breakout Box

◦This ABB is used for bench testing, troubleshooting, repair and calibration using pin to pin connections with up to two EDAC 90 connectors.

◦ (the picture shows up to 67 pins) 17 individual lamps and 17 individual SPST toggle switch to drive them to High or Low. 6 convenient independent SPST toggle switches.

◦ It is used in conjunction with different harnesses as needed to adapt to a practically any LRU.

02 - Powered Triple Auxiliary Breakout Box

◦This ABB is very similar with the difference that it is capable of generating voltages of 115 Vac, 28Vdc, 26Vac and 5Vac if the ABB is powered with 115/400.

 with up to three 90 pins connectors. 

◦16 lamps with individual leads connections. It is used in conjunction with different harnesses as needed to adapt to a practically any LRU with one, two or three connectors up to 90 pins. 

◦ Provides connector DB-50 to connect ARINC429/RS232-422 analyzer.

03 - ARINC-600 Powered Auxiliary Breakout Box.

◦ This ABB is is used for bench testing, troubleshooting, repair and calibration of various different units for any kind of aircraft using ARINC-600 connectors Shell Type I or II. 

◦ 40 individual lamps, convenient independent SPST toggle switches. 

◦ It is used in conjunction with different harnesses, capable of generating voltages of 115Vac, 28Vdc, 26Vac and 5Vac. 

◦ Provides connector DB-50 to connect ARINC429/RS232-422/485 analyzer

04 - Universal Avionics Test Panel

◦ This Generic Test Set when used in conduction with an AQS100-04x Test Kit and an ARINC 429/626 Data Bus Analyzer provides capability to test various units like instruments, control panels, clocks, annunciators and others from Gables, Boeing, Collins, Honeywell, etc.

◦ A test kit (AQS100-04x) is required for each unit being tested. Each test kit includes an interconnect cable and a test panel discrete function overlay, converting the test fixture into a dedicated test set.

05 - Manual Logic Encoder

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing a logic encoder with different voltage levels.

◦ 20 convenient independent SPDT toggle switches 

◦ It is used in conjunction with banana cables as needed to adapt to a practically any LRU using Auxiliary Breakout Box.

06 - Programmable Power Interrupt Test Fixture

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

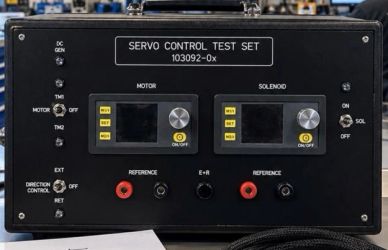

07 - Servo Control Test Set

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

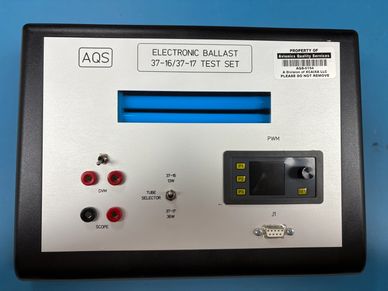

08 - Electronic Ballast Test Set

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

09 - V25 Relay Box Test Set

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

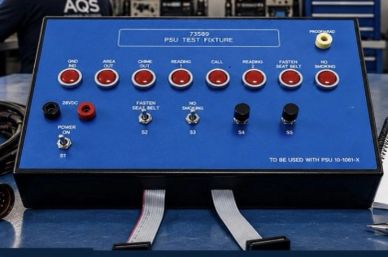

10 - PSU Test Set

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

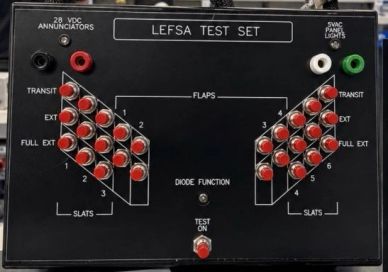

11 - LEFSA Test Set

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

12 - Equipment Cooling Test Set

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

13 - Vibration Signal Conditioner

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.

14 - Multiple DC Source

◦ This Box is is used for bench testing, troubleshooting, repair and calibration of various different units needing an interruption in the main power line. 

◦ A Menu with different choices for interrupt delay at touch panel display. 

◦ It adapts to a practically any LRU being tested and powered in the bench.


AQS101 - Navigation

Add a description about this category

01 - CTL-X2 Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

02 - A320 Communication Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

03 - B777 Communication Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

04 - B757/767 Cabin Pressure Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

05 - B737 Cabin Pressure Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

06 - B737NG DCPSP Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

07 - SDU Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

08 - TR3500-1 Test Set CSD-714

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

10 - THALES VSI RA/TA Vertical Speed TCAS Indicator Test Set

◦ This tester is a direct substitute or equivalent option for the Thales 68001-791 and 68001-902 TEST SETS.

◦ Test panel (AQS101-10) is used for bench testing, troubleshooting, repair and/or overhaul of the THALES VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 457400xxxxxx, as specified in 34-43-22, 34-43-23 and 34-43-24.

◦ Complete stand-alone tester, no ATE software required, no ARINC 429 analyzer needed.

11 - HONEYWELL VSI RA/TA Vertical Speed TCAS Indicator Test Set

◦ This tester is a direct substitute or equivalent option for the Honeywell TEST SET.

◦ Test panel (AQS101-11) is used for bench testing, troubleshooting, repair and/or overhaul of the Honeywell VSI RA/TA VERTICAL SPEED TCAS INDICATOR, P/N 066-50001-xxxx  , as specified in 34-45-20.

◦ Complete stand-alone tester, no ATE software required, RINC 429 analyzer needed.

20 - B737-NG Electronic Flight Instrument System Test Set

◦ This tester is an equivalent option for the ATEC Series 6 or STS 2000.

◦ Test panel (AQS101-20) is used for bench testing, troubleshooting, repair and/or overhaul of the B737-600, -700, -800, -900 and MAX, Electronic Flight Instrument System, Control Panel, P/N 4082730-901, as specified in ATA 31-61-28.

◦  Metallic enclosure, alternate for this test set also exist in a smaller plastic

ABS/metallic version.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

21 - B757 Electronic Flight Instrument Control Test Set EFIC-701

◦ This tester is an equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-21) is used for bench testing, troubleshooting, repair and/or overhaul of the B757 and B767 EFIC-701, Electronic Flight Instrument Control, P/N 622-5048-XXX Series, as specified in ATA 34-22-72.

◦ Plastic ABS or metallic enclosure.

◦ Complete stand-alone tester, no ATE adapter or software required, no ARINC429 analyzer needed.

◦ Harness AQS101-210 provided.

22 - B737 Electronic Flight Instrument Control Test Set EFIC-701D

◦ This tester is an equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-22) is used for bench testing, troubleshooting, repair and/or overhaul of the B737 EFIC-701D, Electronic Flight Instrument Control, P/N 622-8001-XXX Series, as specified in ATA 34-22-66.

◦ Plastic ABS or metallic enclosure.

◦ Complete stand-alone tester, no ATE adapter or software required, no ARINC429 analyzer needed.

◦ Harness AQS101-220 provided.

23 - B747/767 Electronic Flight Instrument Control Test Set

◦ This tester is an equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-22) is used for bench testing, troubleshooting, repair and/or overhaul of the B737 EFIC-701D, Electronic Flight Instrument Control, P/N 622-8001-XXX Series, as specified in ATA 34-22-66.

◦ Plastic ABS or metallic enclosure.

◦ Complete stand-alone tester, no ATE adapter or software required, no ARINC429 analyzer needed.

◦ Harness AQS101-220 provided.

24 - B777 Electronic Flight Instrument Control Panel Test Set

◦ This tester is an equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-22) is used for bench testing, troubleshooting, repair and/or overhaul of the B737 EFIC-701D, Electronic Flight Instrument Control, P/N 622-8001-XXX Series, as specified in ATA 34-22-66.

◦ Plastic ABS or metallic enclosure.

◦ Complete stand-alone tester, no ATE adapter or software required, no ARINC429 analyzer needed.

◦ Harness AQS101-220 provided.

25 - B777 Cursor Control Panel Test Set

◦ This tester is an equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-22) is used for bench testing, troubleshooting, repair and/or overhaul of the B737 EFIC-701D, Electronic Flight Instrument Control, P/N 622-8001-XXX Series, as specified in ATA 34-22-66.

◦ Plastic ABS or metallic enclosure.

◦ Complete stand-alone tester, no ATE adapter or software required, no ARINC429 analyzer needed.

◦ Harness AQS101-220 provided.

30 - A319/321 ATC/TCAS Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Thales TS1298.

◦ AQS101-23 is used for bench testing, troubleshooting, repair and/or overhaul of the A319, A320, A321 ATC/TCAS Control Panel C12404 Series.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Harness provided AQS101-230.

40 - A319/321 Inertial Control Display Unit Test Set

◦ This tester is a direct substitute or equivalent option for the ATEC STS 1000 Automated Test System.

◦ AQS101-24 is used for bench testing, troubleshooting, repair and/or overhaul of the CG1151ACxx, as specified in ATA 31-12-12.

◦ Metallic enclosure, option of this test fixture.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Harness provided AQS101-240.

41 - B737 Inertial Control Display Unit Test Set

◦ This tester is a direct substitute or equivalent option for the ATEC STS 1000 Automated Test System.

◦ AQS101-25 is used for bench testing, troubleshooting, repair and/or overhaul of the CG1135ACxx, as specified in ATA 31-21-11.

◦ Metallic enclosure, option of this test fixture.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Harness provided AQS101-250.

42 - Inertial Control Display Unit Test Set

◦ This tester is a direct substitute or equivalent option for the ATEC STS 1000 Automated Test System.

◦ AQS101-26 is used for bench testing, troubleshooting, repair and/or overhaul of the CG1136ACxx, as specified in ATA 31-21-14.

◦ Metallic enclosure, option of this test fixture.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Harness provided AQS101-260.

50 - B747/767 Display Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Rockwell/Collins ATE ITS-700.

◦ AQS101-29 is used for bench testing, troubleshooting, repair and/or overhaul of the B747, B767, Display Control Panel, P/N 622-8590-XXX Series, as specified in ATA 31-61-57.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Harness provided AQS101-290.

51 - B737NG LCDCDU Control Panel Test Set

 This tester is a direct substitute or equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-30) is used for  bench testing, troubleshooting, repair and/or overhaul of the B737NG LCDCDU P/N 17410-0x-0x, as specified in ATA 34-61-14.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness provided AQS101-300.

52 - B777 Display Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for the Rockwell/Collins ATE ITS-700.

◦ Test panel (AQS101-30) is used for  bench testing, troubleshooting, repair and/or overhaul of the B737NG LCDCDU P/N 17410-0x-0x, as specified in ATA 34-61-14.

◦ Complete stand-alone tester, no ATE software required, no ARINC429 analyzer needed.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness provided AQS101-300.


AQS102 - Electrical and Electronic

Add a description about this category

01 - CT4648 Test Set

◦ This tester is a direct substitute or equivalent option for the Koito 83000-05602 TEST SET.

◦ AQS102-10 is used for bench testing, troubleshooting, repair and/or overhaul of the KOITO WINDOWS HEAT CONTROLLER, P/N 83000-05602, as specified in ATA 30-40-04, 30-41-11, 28-24-72, 30-40-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Power load not included.

◦ Harness provided AQS102-100.

02 - B737NG Engine Accessory Unit Test Set

◦ This tester is a direct substitute or equivalent option for the Koito 83000-05602 TEST SET.

◦ AQS102-10 is used for bench testing, troubleshooting, repair and/or overhaul of the KOITO WINDOWS HEAT CONTROLLER, P/N 83000-05602, as specified in ATA 30-40-04, 30-41-11, 28-24-72, 30-40-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Power load not included.

◦ Harness provided AQS102-100.

03 - B737/747/757/767 Battery Charger Test Set

◦ This tester is a direct substitute or equivalent option for the Koito 83000-05602 TEST SET.

◦ AQS102-10 is used for bench testing, troubleshooting, repair and/or overhaul of the KOITO WINDOWS HEAT CONTROLLER, P/N 83000-05602, as specified in ATA 30-40-04, 30-41-11, 28-24-72, 30-40-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Power load not included.

◦ Harness provided AQS102-100.

10 - B737NG Window Heat Controller Test Set

◦ This tester is a direct substitute or equivalent option for the Koito 83000-05602 TEST SET.

◦ AQS102-10 is used for bench testing, troubleshooting, repair and/or overhaul of the KOITO WINDOWS HEAT CONTROLLER, P/N 83000-05602, as specified in ATA 30-40-04, 30-41-11, 28-24-72, 30-40-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Power load not included.

◦ Harness provided AQS102-100.

11 - B757/767 Window Heat Controller Test Set

◦ This tester is a direct substitute or equivalent option for the Honeywell CT8069

TEST SET.

◦ AQS102-20) is used for bench testing, troubleshooting, repair and/or overhaul of the Honeywell Windows Heat Controller, P/N 624066-x, as specified in ATA 30-41-07.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Power load not included.

◦ Harness provided AQS102-200.

12 - B757/767 Windows Heat Controller Simulated Power Load

◦ This tester is a direct substitute or equivalent option for the Honeywell CT8073

Simulated Load.

◦ Metallic enclosure.

13 - A319/320/321 Cargo Heat Controller Test Set

◦ This tester is directly built by schematics shown in CMM for Nord-Micro Cargo Heat Controllers.

◦ Test panel (AQS102-30) is used for bench testing, troubleshooting, repair and/or overhaul of the Nord-Micro Cargo Heat Controllers, P/N 600611-00-50x Series and 600611-00-60x Series, as specified in ATA 21-43-01 and 21-43-05.

◦ ABS Plastic-Metallic enclosure.

◦ Version in complete metallic enclosure available.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness provided AQS10

14 - SYLZ 51855 Test Set

◦ This tester is directly built by schematics shown in CMM for Nord-Micro Cargo Heat Controllers.

◦ Test panel (AQS102-30) is used for bench testing, troubleshooting, repair and/or overhaul of the Nord-Micro Cargo Heat Controllers, P/N 600611-00-50x Series and 600611-00-60x Series, as specified in ATA 21-43-01 and 21-43-05.

◦ ABS Plastic-Metallic enclosure.

◦ Version in complete metallic enclosure available.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness provided AQS10

15 - CT8081 ATR42/72 Windows Heat Controller Test Set

◦ This tester is directly built by schematics shown in CMM for Nord-Micro Cargo Heat Controllers.

◦ Test panel (AQS102-30) is used for bench testing, troubleshooting, repair and/or overhaul of the Nord-Micro Cargo Heat Controllers, P/N 600611-00-50x Series and 600611-00-60x Series, as specified in ATA 21-43-01 and 21-43-05.

◦ ABS Plastic-Metallic enclosure.

◦ Version in complete metallic enclosure available.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness provided AQS10

20 - Handset Test Fixture A319/320 Handset Test Set

◦ Test panel (AQS102-40) is a DTMF decoder Test Set used for bench testing, troubleshooting, repair and/or overhaul of ST3100-2x-xx and ST3100-3x-xx ATA: 23-40-01.

◦ ABS Plastic-Metallic enclosure.

◦ Two versions available, one with  graphic touch panel display and other with LCD display.

◦ Standard shop test equipment needed to complete unit verification.

30 - B757/767 Audio Accessory Unit Test Set

◦ This tester is a direct substitute or equivalent option for BAE Systems A23006-45, A23006-46 or A23006-47 Test Set.

◦ Test panel (AQS102-50) is used for bench testing, troubleshooting, repair and/or overhaul of the BAE Systems Audio Accessory Unit Module Assembly, P/N 285T0001-xx, as specified in ATA 23-42-52 and 23-42-61.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-500 included.

31 - BE1875BA Audio Unit Test Set

◦ This tester is a direct substitute or equivalent option for BAE Systems A23006-45, A23006-46 or A23006-47 Test Set.

◦ Test panel (AQS102-50) is used for bench testing, troubleshooting, repair and/or overhaul of the BAE Systems Audio Accessory Unit Module Assembly, P/N 285T0001-xx, as specified in ATA 23-42-52 and 23-42-61.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-500 included.

32 - TR5051-1 Test Set

◦ This tester is a direct substitute or equivalent option for BAE Systems A23006-45, A23006-46 or A23006-47 Test Set.

◦ Test panel (AQS102-50) is used for bench testing, troubleshooting, repair and/or overhaul of the BAE Systems Audio Accessory Unit Module Assembly, P/N 285T0001-xx, as specified in ATA 23-42-52 and 23-42-61.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-500 included.

40 - B737NG Audio Control Panel Test Set

◦ This tester is a direct substitute or equivalent option for Avtech 2020-1 Test Set.

◦ Test panel (AQS102-51) is used for bench testing, troubleshooting, repair and/or overhaul of the B737AVTECH 5141 Series, 5144 Series, 5145 Series and 5345 Series DIGITAL AUDIO CONTROL PANEL (ACP) as specified in ATA 23-50-17, 23-50-16, 23-50-38, 23-44-00, 23-50-85, 23-50-15, 23-50-74, 23-42-52, 23-42-61 and 23-50-83 .

◦ For some P/N the tester has to be combined with others two test fixtures (included in the pa

41 - Microphone Monitor Test Set

◦ This tester is a direct substitute or equivalent option for Avtech 2020-1 Test Set.

◦ Test panel (AQS102-51) is used for bench testing, troubleshooting, repair and/or overhaul of the B737AVTECH 5141 Series, 5144 Series, 5145 Series and 5345 Series DIGITAL AUDIO CONTROL PANEL (ACP) as specified in ATA 23-50-17, 23-50-16, 23-50-38, 23-44-00, 23-50-85, 23-50-15, 23-50-74, 23-42-52, 23-42-61 and 23-50-83 .

◦ For some P/N the tester has to be combined with others two test fixtures (included in the pa

50 - B757/767 Pack Temperature Controller Test Set

◦ This tester is a direct replacement for Honeywell CT8061 Test Set.

◦ Test panel (AQS102-60) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Pack Temperature Controller 625946-8 Series 1 to 5, 625946-9 Series 1 to 5 and 625946-10 Series 1 to 5, as specified in ATA 21-51-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-600 included.

51 - B757/767 Zone Temperature Controller Test Set

◦ This tester is a direct replacement for Honeywell CT8074 Test Set.

◦ Test panel (AQS102-61) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Cabin Zone Temperature Controller 624958-4 Series 1

and Series 2, as specified in ATA 21-61-23.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-610 included.

52 - B737/757 Pack/Zone Temperature Controller Test Set

◦ This tester is a direct replacement for Honeywell CT8094 Test Set.

◦ Test panel (AQS102-62) is used for bench testing, troubleshooting, repair and/or overhaul of the Honeywell Pack Cabin Zone Temperature Controller 622814-x Series  as specified in ATA 21-61-07.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-620 included

53 - Temperature Controller Test Set

◦ This tester is a direct replacement for Honeywell CT8060 Test Set.

◦ Test panel (AQS102-63) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Temperature Controller 625934-6 Series as specified in

ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-630 included.

54 - Auxiliary Zone Temperature Controller Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

60 - Floor Temperature Setting Panel Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

61 - Brake Temperature Monitoring Unit Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

62 - Continuous Fire and Overheat Detection Unit Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

70 - Control Unit Z212H Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

71 - 600629 CB Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

72 - 600629 CB Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

73 - Flush Control Unit FCU9811 Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

74 - A320 Ice Detector Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included

75 - A320 500600-00-110 Test Set

◦ This tester is a direct replacement for Honeywell CT8107 Test Set.

◦ Test panel (AQS102-64) is used for bench testing, troubleshooting, repair and/or

overhaul of the Honeywell Auxiliary Zone Temperature Controller 1150406-1 as

specified in ATA 21-61-03.

◦ Metallic enclosure.

◦ Standard shop test equipment needed to complete unit verification.

◦ Harness AQS102-640 included


AQS103 - Instruments

Add a description about this category

01 - Electronic Clock Test Set

◦ This tester is a direct substitute or equivalent option for the AvtechTyee

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.

02 - Electronic Clock Test Set

◦  This tester is a direct substitute or equivalent option for the  GET61364-001  TEST SET.

◦  Test panel (AQS103-02) is used for bench testing, troubleshooting, repair and/or overhaul of the GE Electronic Clock, P/N 2610-07-1, as specified in 31-21-10.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification. ARINC429 analyzer needed.

◦  Harness provided AQS103-020.

03 - Electronic Clock Test Set

◦  This tester is a direct substitute or equivalent option for the AP56700-1 TEST SET.

◦  Test panel (AQS103-03) is used for bench testing, troubleshooting, repair and/or overhaul of the Air Precision APE5100, APE5100-1 and APE5110, as specified in 31-21-24.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-030.

04 - Electronic Clock Test Set

◦  This tester is a direct substitute or equivalent option for the AP56700-1 TEST SET.

◦  Test panel (AQS103-03) is used for bench testing, troubleshooting, repair and/or overhaul of the Air Precision APE5100, APE5100-1 and APE5110, as specified in 31-21-24.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-030.

10 - Fuel Flow Meter Indicator Test Set

◦  This tester is a direct substitute or equivalent option for the AP56700-1 TEST SET.

◦  Test panel (AQS103-03) is used for bench testing, troubleshooting, repair and/or overhaul of the Air Precision APE5100, APE5100-1 and APE5110, as specified in 31-21-24.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-030.


AQS104 - Radio

Add a description about this category

01 - Antenna Test Set

◦ This tester is a direct substitute or equivalent option for the Collins

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.


AQS105 - Electro-mechanical Accessories

Add a description about this category

01 - Linear and Rotary Actuators Test Set

◦ This tester is a direct substitute or equivalent option for the Collins

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.



02 - Servo Actuator Test Set

◦ This tester is a direct substitute or equivalent option for the Collins

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.



03 - Servo Control Test Set (Mil.)

◦ This tester is a direct substitute or equivalent option for the Collins

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.



04 - Post Combustion Control Box Test Set (Mil.)

◦ This tester is a direct substitute or equivalent option for the Collins

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.



10 - B737 Landing Light Test Set

◦ This tester is a direct substitute or equivalent option for the Collins

TR9010-1 TEST SET.

◦ Test panel (AQS103-01) is used for bench testing, troubleshooting, repair and/or overhaul of the AvtechTyee Electronic Clock, P/N 9010-1-1, 9010-1-2 and 9010-1-3, as specified in 31-20-01 & 31-25-01.

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  ARINC429 analyzer needed.

◦  Harness provided AQS103-010.



11 - A320 Landing Light Test Set

◦ Test panel (AQS105-11) is used for bench testing, troubleshooting, repair and/or overhaul of the P/N         , as specified in ATA        ,

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  Harness provided.



12 - B767 Landing Light Test Set

◦ Test panel (AQS105-12) is used for bench testing, troubleshooting, repair and/or overhaul of the P/N                 , as specified in ATA       .

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  Harness provided AQS103-010.



13 - SK1752 Landing Light Test Set (Mil.)

◦ Test panel (AQS105-13) is used for bench testing, troubleshooting, repair and/or overhaul of the P/N                                   , as specified in ATA;

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  Harness provided AQS103-010.



20 - A320 Strobe Light Test Set


◦ Test panel (AQS105-20) is used for bench testing, troubleshooting, repair and/or overhaul of the  P/N                    , as specified in ATA

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  Harness provided AQS103-010.



30 - Lamp Dimmer Test Set

◦ Test panel (AQS105-30) is used for bench testing, troubleshooting, repair and/or overhaul of the P/N              , as specified in ATA       .

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification.

◦  Harness provided .



31 - A320 Ballast Test Set


◦ Test panel (AQS105-31) is used for bench testing, troubleshooting, repair and/or overhaul of the P/N                 as specified in ATA                .

◦  ABS Plastic-Metallic enclosure.

◦  Standard shop test equipment needed to complete unit verification;

◦  Harness provided.



(941) 726-6632 aqs.mro@gmail.com

Copyright © 2019 Avionics Quality Services - All Rights Reserved.


contact us:

admin@xcaixa.net

aqs.mro@gmail.com

Powered by

Generic Test Set

Welcome! Check out my new announcement.

Learn more
